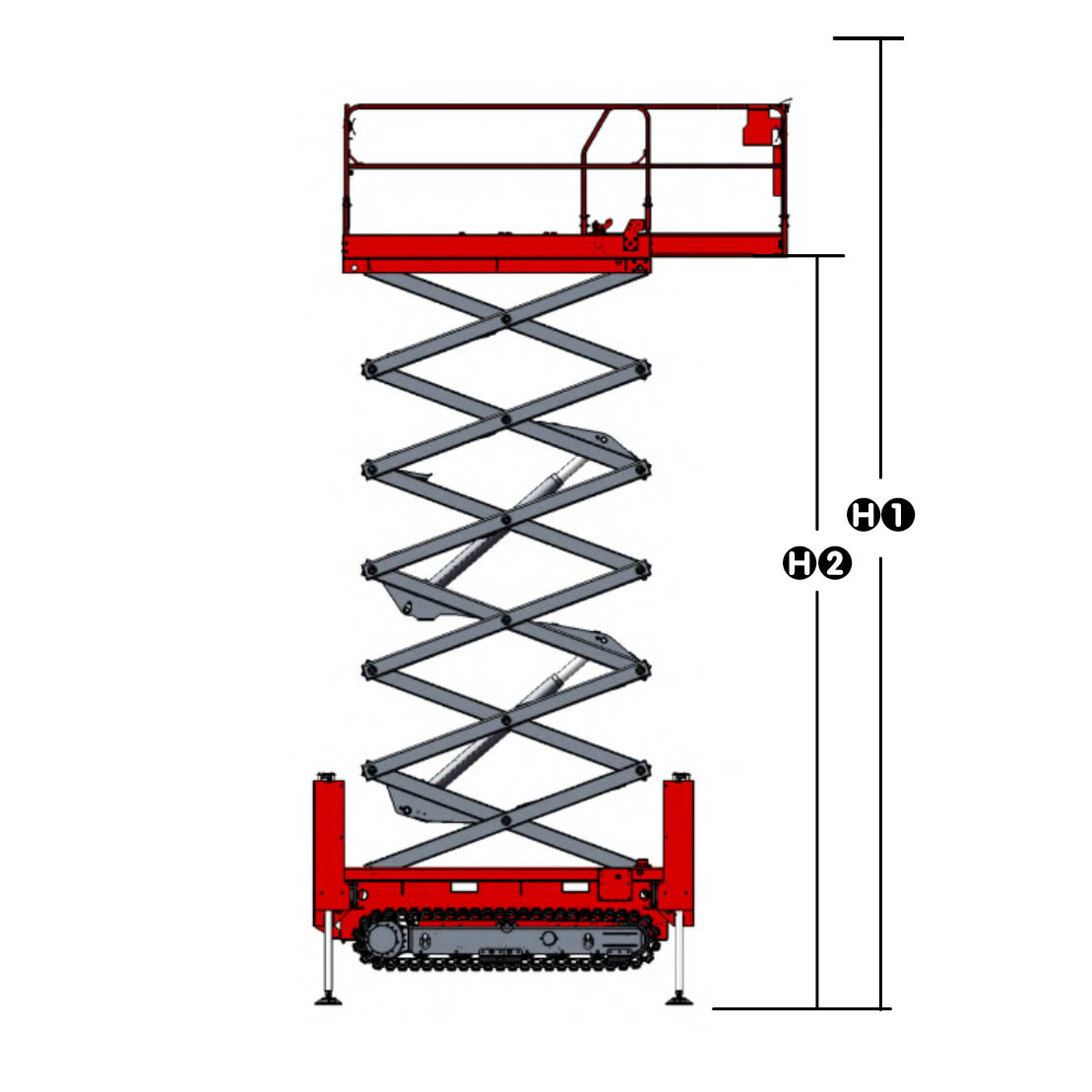

| Working height max H1 | 13.8m |
|---|---|
| Platform height max H2 | 11.8m |
| Lifting capacity | 320kg |
| Lifting capacity on extension | 113kg |

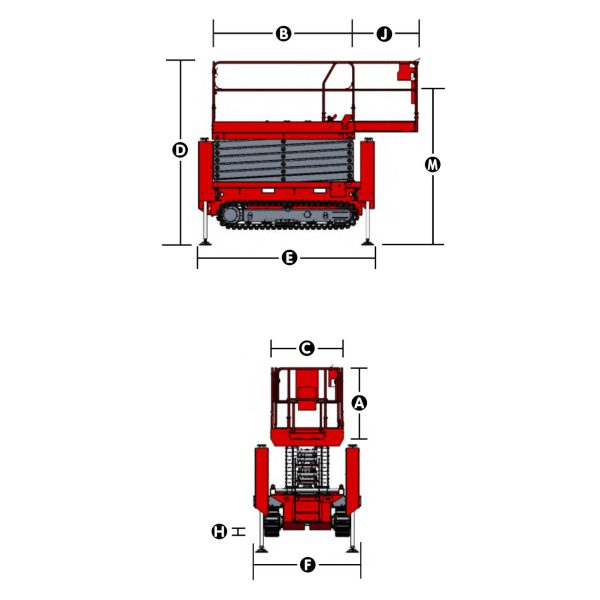

| Platform size B*C*A | 2.25×1.14×1.1m |
| Max. Outreach J | 1.0m |
| Length E | 2.80m |
| Width F | 1.65m |
| Height D | 2.67m |
| Height - guard rails folded M | 2.13m |
| Ground clearance | 169mm |
| Max. platform occupancy | 2 pers |
| Speed, platform down | 2.4km/h |
| Speed, platform up | 0km/h |
| Rising / lowering time | 85 / 75s |
| Gradeability | 40% |
| Outrigger level - side to side | 12° |
| Outrigger level - front to back | 5° |
| Tilt sensor- side to side | 2° |
| Tilt sensor- front to back | 3° |
| Power source | 8pcs 6vx200Ah |
| Charger | 48V/4.5kW |
| Kaal | 3760 kg |
| Mõõtmed | 280 × 165 × 267 cm |

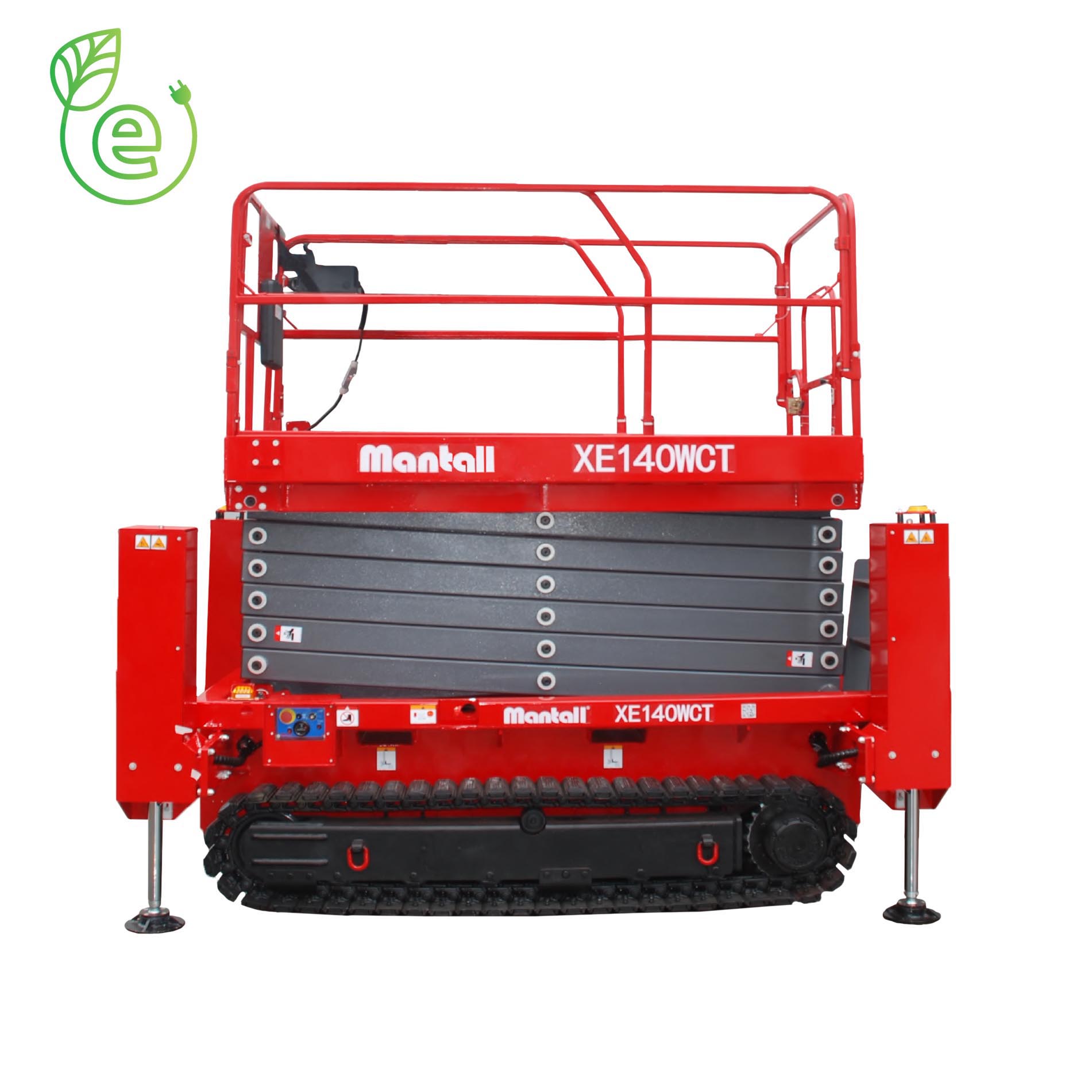

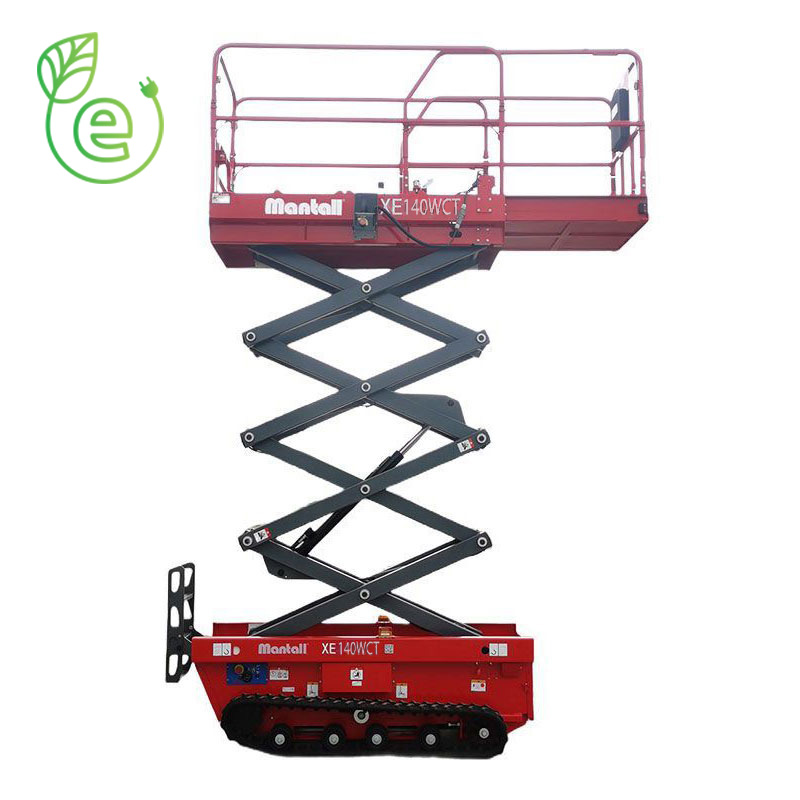

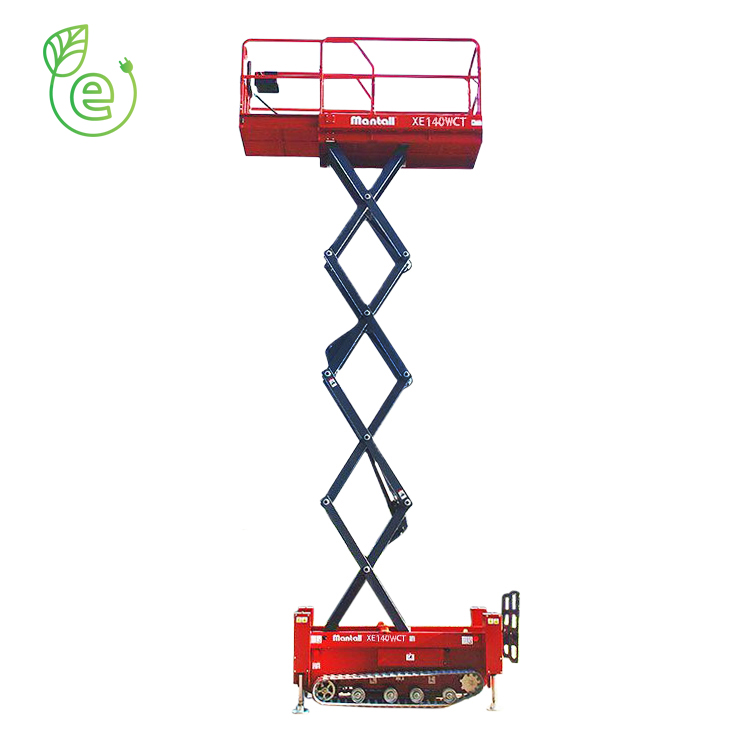

Mantall XE140WCT OR – 13.8m
Mantall has a wide range of belt lifters for indoor and outdoor use. The XE140WCT OR has a working height of 13.8m and a maximum platform extension of 1m. The platform capacity is 320 kg.
The lift is designed to work on uneven surfaces because it has hydraulic self-levelling legs, which allow the user to automatically level the scissor lift on slopes up to 5 degrees front to back and up to 12 degrees side to side.
Call for Price
Saada taotlusStandard Features
- Automatically leveling hydraulic outriggers
- 0.9X1.84m platform
- Tilt alarm system
- Fault diagnosis system
- Automatic braking system
- 200*72 hard rubber tracks
- Hour counter
- External charging indicator
- AC outlet in the platform
- Motion alarm
- Display with error codes
- Indicator light
- Buzzer
- Proportional controller
- Emergency lowering
- Maintenance-free battery
- Fork pockets
- This electric lift has zero emissions, no noise, and strong climbing function.
- Load capacity up to 320 kg, the lift is stable, safe and reliable.
- Built-in diagnostic system, intelligent fault alarm system and other functions.
